DGS-1100-24V2

24 x 10/100/1000Base-T ports EasySmart switch

Description

The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your networking requirements.

D-Link Green/Power Saving Performance
Compliant with IEEE 802.3az Energy Efficient Ethernet, the DGS-1100 Series consumes less energy by cutting down on power consumption when port utilization is low. By deploying compatible devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps save energy automatically. The switches monitor the link status of every port and significantly reduce power consumption of the interface when there is no link or network traffic detected.

Easy to Deploy
The DGS-1100 Series supports an intuitive client-based utility (D-Link Network Assistant Utility) and a web-based management interface. The client-based utility discovers all D-Link Smart Switches within the same Layer 2 network segment, making the initial setup quick and easy. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switch to be controlled from any network-connected PC.

Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports Surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or have higher priority.

Advanced Features
The DGS-1100 Series is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

General features

Hardware Version
• A1

Size
• 11-inch desktop (rackmount kit included)
• 1U Height

Interface
• 24 x 10/100/1000Base-T ports

Port Standards & Functions
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• IEEE 802.3ab compliant
• IEEE 802.3x Flow Control support full-duplex mode
• Auto MDI/MDIX
• Auto-negotiation
• Supports half/full-duplex operation
• IEEE 802.3az compliant

Full/Half Duplex
• Full/half duplex for 10/100 Mbps speeds
• Full duplex for Gigabit speed

Performance
Switching Capacity
• 48 Gbps

Switching method
• Store and forward

MAC Address Table Size
• 8K Entries

Maximum 64-byte Max.packet Forwarding Rate
• 35.71 Mbps

DRAM Size
• 128 MB

Packet Buffer
• 512 KB

Flash Memory
• 16 MB

LEDs
• Power (per device)
• Link/Activity/Speed (per port)

Software Specifications
VLAN
• Port-based VLAN
• 802.1Q tagged VLAN
• Auto Surveillance VLAN
• Voice VLAN
• Management VLAN
• Asymmetric VLAN
• VLAN Group
  - Supports 128 static VLAN groups
  - Max. 4094 VIDs

L2 Features
• Flow control
  - 802.3x Flow control
  - HOL Blocking Prevention
• Jumbo frames up to 10240 Bytes
• IGMP Snooping
  - IGMP v1/v2/v3 awareness Snooping
  - Supports 128 Groups
  - IGMP Snooping Querier
• 802.3ad Link Aggregation:
  - Support 8 groups per device and 8 ports per group
• Loopback Detection
• Cable diagnostics
• LLDP
• Port Mirroring
  - One-to-One
  - Many-to-One
• Statistics
  - Tx Ok
  - Tx Error
  - Rx Ok
  - Rx Error
• Spanning Tree Protocol
  - 802.1D STP
  - 802.1w RSTP

Quality of Service (QoS)
• 802.1p Quality of Service
• 8 queues per port
• Queue handling
  - Strict Priority
  - Weighted Round Robin (WRR)
• Port-based bandwidth control (rate limiting)
  - Ingress: 16 Kbps
  - Egress: 16 Kbps

Security
• D-Link Safeguard
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS attack prevention
• SSL

Management
• Web-based GUI (Supports IPv4/IPv6)
• Client-based D-Link Network Assistant (DNA)

Green Technology
• Power saving by
  - Link status
  - Cable length
  - LED shut-off
  - Port shut-off
  - System hibernation

MIB/RFC Standards
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• RFC1213 MIB II
• RFC1493 Bridage MIB
• RFC1907 SNMPv2 MIB
• RFC1215 MIB Traps Convention
• RFC2233 Interface Group MIB
• RFC2665 Ether-like MIB
• RFC4363 IEEE 802.1p MIB
• ZoneDefense MIB
• Private MIB
• RFC951 BootP client
• RFC1542 BootP/DHCP client
• RFC2236 IGMP Snooping

Physical/Environmental
MTBF (Hours)
• 424 762 hours

Acoustic
• 0 dB

Heat Dissipation
• 54.3 BTU/hr

Power Input
• AC Input: 100 to 240 V AC, 50/60 Hz

Maximum Power Consumption
• 15.9 W

Standby Power Consumption
• 4.5 W

Dimensions (W x D x H)
• 280 x 180 x 44 mm

Weight
• 1.32 kg

Ventilation
• Fanless

Operating Temperature
• -5 to 50 В°C

Storage Temperature
• -40 to 70 В°C

Operating Humidity
• 0% to 95% non-condensing

Storage Humidity
• 0% to 95% non-condensing

EMI
• FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC

Safety
• cUL, CE LVD, CB, BSMI, CCC

Certificates

Order info

DGS-1100-24V2  24 x 10/100/1000Base-T ports EasySmart switch

Pictures

DGS-1100-24V2/A1

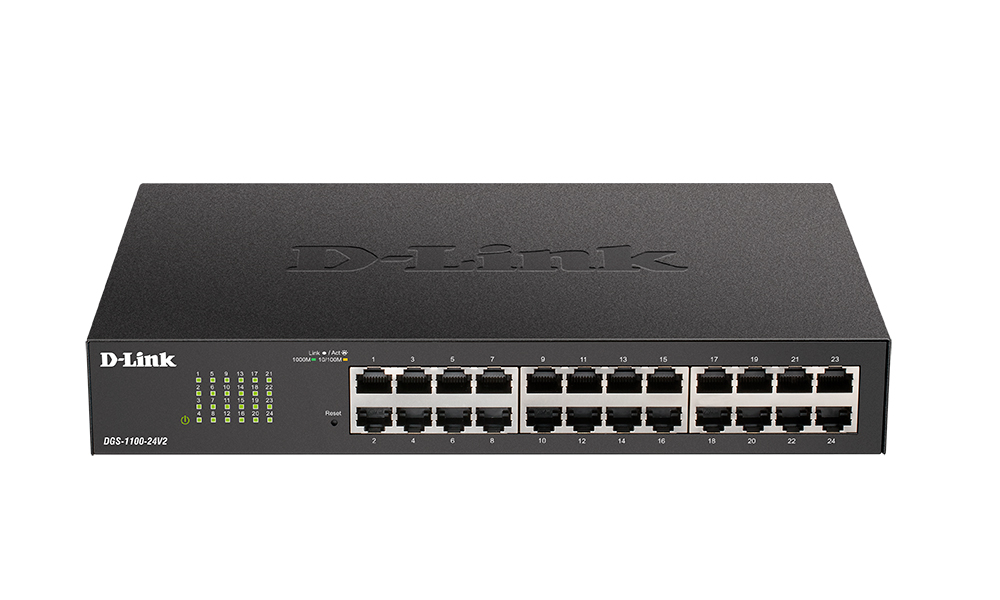

Front view
