DWA-610EOL EOS

WIRELESS G NOTEBOOK ADAPTER
Nereden Alınır

Tanımlama

BASIC WIRELESS CONNECTIVITY
Connect to your wireless network from your notebook PC using the DWA-610 Wireless G Notebook Adapter and browse the web, check e-mail, and chat with friends and family online. The Wireless G Notebook Adapter offers simple network connectivity without the hassle of running a network cable.

BASIC SECURITY PROTECTION
To protect your data and privacy, the Wireless G Notebook Adapter supports WEP and WPA encryption for connecting to a secure wireless network.

COMPATIBILITY ASSURANCE
The Wireless G Notebook Adapter is based on the 802.11g standard and is backwards compatible with 802.11b, ensuring compatibility with a wide range of wireless routers and networks.

EASY TO INSTALL & CONNECT
D-Link’s Quick Setup Wizard provides easy setup for this notebook adapter. The addition of the Wi-Fi Protected Setup (WPS) function provides advanced security features that remain simple enough for the average user to confgure correctly. This function allows for devices to undergo an easy one-time click-button confguration for establishing connection with an access point or wireless router without the need of manually setting up complex encryption codes.

Genel Özellikler

SYSTEM REQUIREMENTS
+  Windows 98SE, ME, XP SP2, 2000 SP4 or Vista
+  CD-ROM drive
+  20MB hard disk space
+  CardBus Type II Slot

STANDARDS
+  IEEE 802.11g
+  IEEE 802.11b

INTERFACE
32-bit CardBus

FREQUENCY RANGE
+  2412 to 2462MHz (North America)
+  2412 to 2472MHz (General Europe)
+  2412 to 2484MHz (Japan)

EMISSION SCHEMES
DSSS, OFDM

DATA MODULATION SCHEMES
DBPSK, DQPSK, CCK and OFDM
(BPSK/QPSK/16-QAM/64-QAM)

DATA RATES 1
+  802.11g: 6/9/12/18/24/36/48/54Mbps
+  802.11b: 1/2/5.5/11Mbps

ANTENNAS
+  Dual Printed Antenna with Diversity Switching

SECURITY
+  64/128-bit WEP data encryption
+  Wi-Fi Protected Access (WPA/WPA2-PSK, WPA/WPA2-EAP)
+  802.1x


Fiziksel Özellikler

POWER INPUT
3.3 VDC +/- 5%

POWER CONSUMPTION
+   TX: 450mA
+   RX: 300mA
+   Standby: 50mA

DIAGNOSTIC LEDS
+  Activity
+  LInk

DIMENSIONS
120 x 54 x 5 mm

WEIGHT
46 grams (0.1 lb)

OPERATING TEMPERATURE
0º to 40º C (32º to 104º F)

STORAGE TEMPERATURE
-20º to 65º C (-4º to 149º F)

OPERATING HUMIDITY
10% to 90% non-condensing

STORAGE HUMIDITY
5% to 95% non-condensing

CERTIFICATIONS
+  FCC Class B
+  CE
+  C-Tick
+  IC
+  Wi-Fi

OS SUPPORT
Windows 98SE, ME, 2000, XP, Vista

Maximum wireless signal rate derived from IEEE standard 802.11g specifcations. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffc, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

Çözümler

Sipariş Bilgisi

DWA-610  802.11g Wireless CardBus Adapter

Görseller

DWA-610

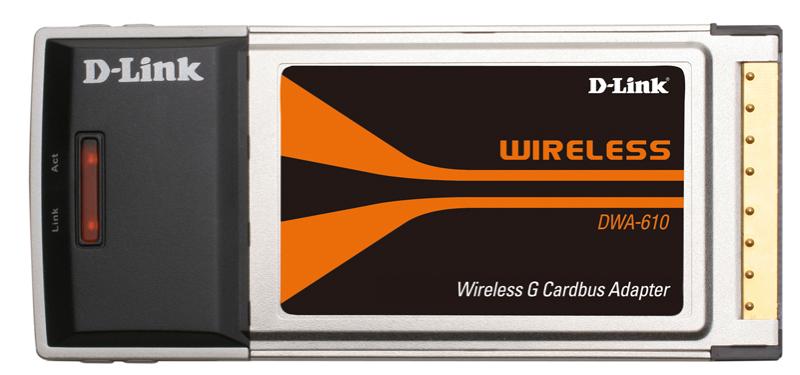

Front view
