ANT24-1400EOL EOS

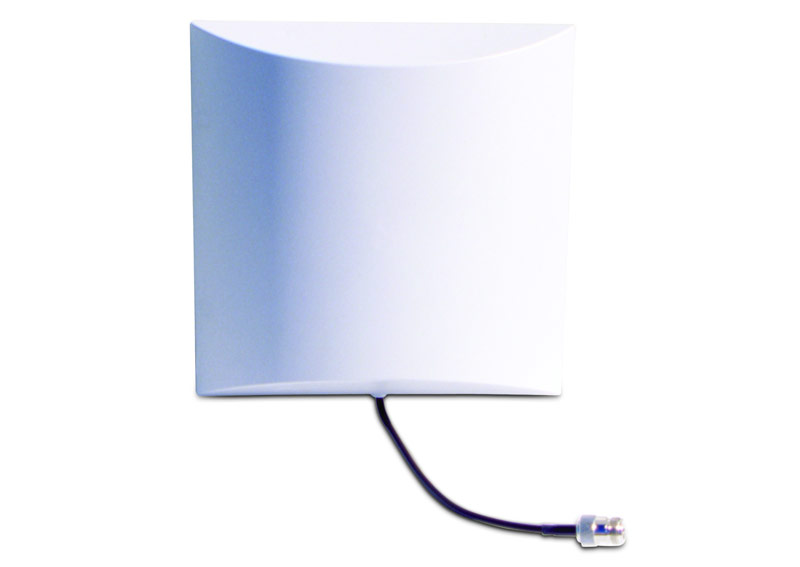

High Gain Directional Panel Antenna for 2.4 GHz ISM Band
Nereden Alınır

Tanımlama

D-Link®, an industry leader in networking, introduces the ANT24-1400 14 dBi Directional Panel Antenna designed to provide extended coverage for an existing 802.11b/g wireless network. The directional design of the ANT24-1400 offers dramatically increased wireless signal coverage in a specific direction allowing for improved data throughput at further distances.

The D-Link ANT24-1400 14dBi Directional Panel Antenna connects to a variety of wireless PCI adapters, wireless routers, and access points on the market today. Whether the wireless router or access point has a SMA or TNC connector, the ANT24-1400 comes with a RP-SMA to RP-TNC conversion adapter to accommodate either connector type.

The D-Link ANT24-0801 includes a swivel mount that allows pivotal adjustment for precise positioning for the most concentrated signal strength. The D-Link ANT24-1400 also includes a lightning surge protector, and a 0.5m (1.5 feet) cable. The ANT24-1400 is weatherproof and made of corrosion-resistant material to withstand harsh outdoor conditions and wind speeds up to 112 miles/hr (180km/hr).

Avoid the cost and complexity of adding additional wireless access points or wireless repeaters when you can easily use the ANT24-1400 indoors or outdoors. Enjoy the benefits of wireless connectivity at greater distances and speeds throughout your indoor or outdoor wireless coverage area.

Genel Özellikler

Electrical Specification
• Frequency range: 2300 MHz - 2500 MHz
• Gain: 14dBi
• VSWR: 1.5 : 1 Max.
• Polarization: Linear, vertical
• HPBW / horizontal: 30o
• HPBW / vertical: 30o
• Front to back ratio: 15 dB
• Downtilt: 0o
• Power handling: 50W (cw)
• Impedance: 50 Ohms
• Connector: N female
• Cable: RG-58/U ; 30cm

Evironmental & Mechanical Characteristics
• Survival wind speed: 180 km/hr
• Temperature: - 40o C to +80o C
• Humidity: 100% @ 25o C
• Lightning protection: DC ground
• Radome color: Gray-white
• Radome material: ABS, UV resistant
• Weight: 0.825 kgw
• Dimensions: 240 x 240 x 69.5 mm


Fiziksel Özellikler

Çözümler

Sipariş Bilgisi

ANT24-1400  High Gain Directional Panel Antenna for 2.4 GHz ISM Band
