The DWS-4026 is a full-featured Unified Switch that centrally manages up to (64) 802.11n Access Points, delivering integrated wireless mobility and security for both wired and wireless users.

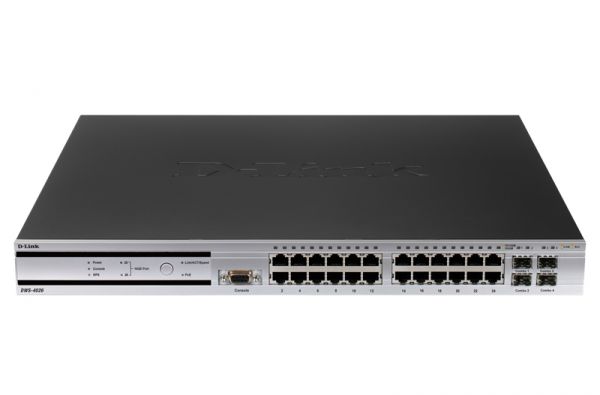

The D-Link® DWS-4026 is the next generation L2+ Unified Wired/Wireless Gigabit Switch with an array of advanced features and 802.11n support. With the ability to manage up to 64 DWL-8600AP wireless access points by itself and up to 256 DWL-8600APs in a switch cluster, the DWS-4026 is a full-featured and cost-effective mobility solution for mid-to-large enterprises and service providers. Extremely versatile and flexible, the DWS-4026 can be deployed as a Wireless Controller in the core network or as an L2+ PoE Gigabit Switch at the edge, depending on the customer’s requirement. By centralizing WLAN configuration and management functions, the DWS-4026 enables network administrators to have the control, security, redundancy, and reliability needed to scale and manage their wireless networks easily and efficiently.
Adaptable Wireless Technology
Most of the current Wireless LAN controllers’ architecture requires wireless traffic to return to the controller for centralized processing, causing unnecessary traffic delay. The DWS-4026 offers network administrators additional options; depending on the wireless application, wireless traffic can either be tunneled back to the switch for better security control or locally forwarded at the access point for optimal performance. This device offers administrators maximized flexibility with options to tunnel client traffic to the switch for centralized security control and forward VoIP traffic directly from the access point for optimal performance.
Comprehensive Wired/Wireless Security
The DWS-4026 offers a state-of-the-art Wireless Intrusion Detection System (WIDS), which empowers network administrators to detect Rogue Access Points and Rogue Clients as well as anticipate wireless threats, preventing them from causing damage to the network. With WIDS, administrators can activate various threat detections and use Radio Frequency (RF) scans to sweep the entire wireless network to any possible security breach in advance. Other wireless security features include WPA/WPA2 Enterprise, 802.11i Captive Portal and MAC Authentication.
On the wired side, the DWS-4026 utilizes Dynamic ARP Inspection (DAI) and DHCP Snooping to ensure maximum security. Together, DAI and DHCP Snooping will prevent even the most sophisticated attacks such as man-in-the-middle and ARP poisoning. Along with other advanced security features such as 802.1X Access Control, Denial-of- Service Protection, Broadcast Storm Control, and Protected Port, the DWS-4026 provides robust and centralized security, ensuring maximum network reliability.
Wireless clients can enjoy seamless and uninterrupted roaming from AP to AP managed by a DWS-4026 even if they are not in the same subnet. Because the DWS-4026 employs various mechanisms such as pre-authentication and key-caching, wireless users can freely “roam” the entire network without needing to re-authenticate. The additional Fast Roaming feature results in disruption-free, reliable wireless connectivity crucial for mobile applications such as Wi-Fi IP Phones and wireless PDAs. Furthermore, the DWS-4026 supports advanced “AP-AP Tunneling,” which is used to support L3 roaming for wireless clients without forwarding any data traffic to the Unified Switch. This can help to significantly reduce network traffic and save bandwidth.
Voice-Optimized Quality of Service (QoS)
The DWS-4026 is specifically designed and optimized for Voice over Wireless traffic with features such as Auto-VoIP and Voice VLAN. The Auto-VoIP feature explicitly matches VoIP streams and provides them a better class-of-service than ordinary traffic. These VoIP streams include the popular call-control protocols such as SIP, H.323 and SCCP. Voice VLAN enables the switch ports to carry voice traffic with defined priority, ensuring that the sound quality of an IP phone will be safeguarded from deteriorating when data traffic on the port is high. Voice QoS capability enables administrators to maintain the integrity and priority of the most time-sensitive traffic.
In addition, the DWS-4026 supports traffic shaping, which helps to smooth out temporary bursts over time so that the transmitted traffic rate is bounded. Other advanced QoS features including per-flow bandwidth control, minimum bandwidth guarantee, and 802.1p CoS all help to keep the network traffic in a predictable manner.
The DWS-4026 offers a “self-healing” network capability to increase the resiliency of the entire wireless network. To make up for a sudden RF signal vacuum created by any “dead” AP (AP with DC power failure, for example), the DWS-4026 automatically increases the transmit output power of the neighboring APs to expand the RF coverage, thereby “healing” the network. Also, to ensure continuous connection for current clients, the DWS-4026 performs load balancing across access points when network traffic reaches a certain threshold by forcing additional clients to associate with other access points. Through a self-healing network and AP load balancing, the DWS-4026 can effectively manage the wireless bandwidth, optimize WLAN traffic and ensure maximum RF coverage.
In addition to all its wireless capabilities, the DWS-4026 also excels as an advanced L2+ PoE Switch. Complete with dynamic routing using RIPv1/v2, ACL security, multi-layer QoS, comprehensive VLAN support, IGMP/MLD Snooping as well as dual 10-Gigabit uplink support, the DWS-4026 truly enables network administrators to integrate their enterprise-class wireless network with their wired infrastructure. Businesses contemplating upgrading their current wired or wireless network can deploy the DWS-4026 to take advantage of its dual-role flexibility.
Multiple DWS-4026 switches can form a Switch Cluster, which enables the network administrator to configure all switches from one single “Cluster Master.” In addition, the Switch Cluster also manages information of all the DWL-8600AP access points as well as their associated clients. This helps to significantly simplify management and reduce maintenance efforts as the network scales up.
